Description:

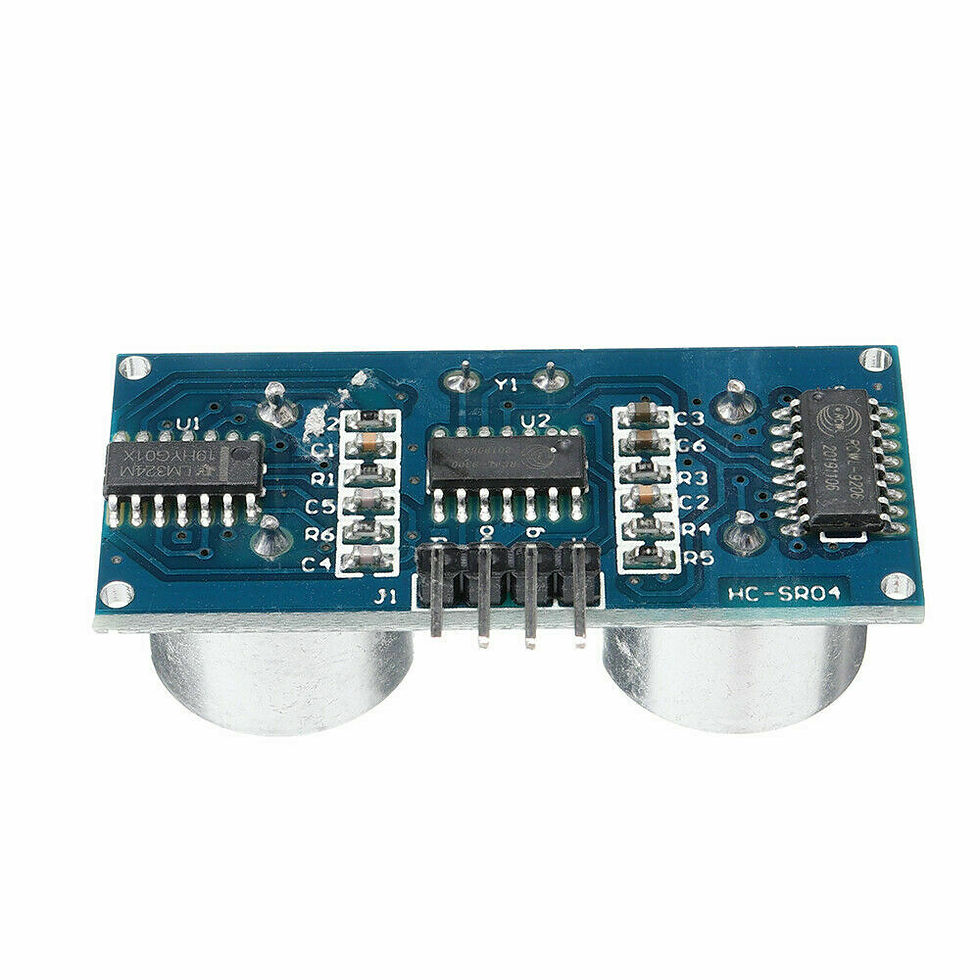

HC-SR04 Ultrasonic Range Finder Distance Measuring Module Sensor Arduino Pic UK
How to:
Supply module with 5V, the output will be 5V while obstacle in range, or 0V if not.The out pin of this module is used as a switching output when anti-theft module, and without the feet when ranging modules.
Note : the module should be inserted in the circuit before been power, which avoid producing high level of misoperation;if not, then power again.
Specification:
Working Voltage : 5V(DC)
Static Current: Less than 2mA.
Output Signal: Electric frequency signal, high level 5V, low level 0V.
Sensor Angle: Not more than 15 degrees.
Detection Distance: 2cm-450cm.
High Precision: Up to 0.3cm
Input Trigger Signal: 10us TTL impulse
Echo Signal : output TTL PWL signal
Mode of connection:
1.VCC
2.trig(T)
3.echo(R)
4.GND
What you will receive:
2PCS HC-SR04 Ultrasonic Module Distance Measuring Transducer
2PCS HC-SR04 Ultrasonic Range Finder Distance Measuring Module Sensor Arduino
