Features:
100% brand new and high quality
Non-contact magnetic induction angle measurement module.
High precision, a variety of output modes: IIC , PWM and voltage.

Electrical parameters:
VCC: 3.3 V
GND: Feed ground
Out: PWM / Analog output voltage
DIR: Direction of rotation (earth = The value increases clockwise; then VCC = The values ​​clockwise are reduced)
SCL: IIC The clock line communication
SDA: IIC Data communication line
GPO: Mode selection (internal ground traction = Programming mode B )

Specification:
Color: As pictures shown.
Size: approx. 23x23mm(0.91x0.91in)
Quantity: 1 pc

Note:
Transition: 1cm=10mm=0.39inch
No retail package.
Please allow 1-3cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Magnetic Encoder(other accessories demo in the picture is not included.)

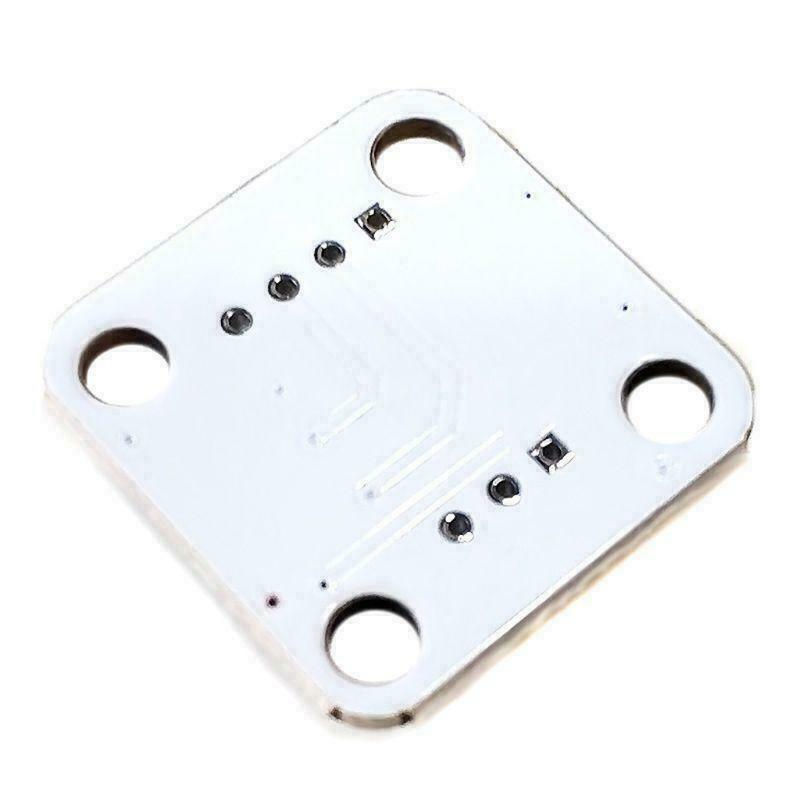

AS5600 Encoder Magnetic Induction Angle Measuring Sensor Module 12bit Precision

SKU: H24
£6.25Price
Quantity

  • New: A brand-new, unused, unopened and undamaged item in original retail packaging (where packaging is applicable). If the item comes direct from a manufacturer, it may be delivered in non-retail packaging, such as a plain or unprinted box or plastic bag. See the seller's listing for full detail
